What Is PCBA?

What PCBA Includes That a Bare PCB Does Not

A PCBA adds mounted components and their electrical connections to a fabricated PCB. The purchased item is the assembly. Although suppliers also use PCB assembly to name the manufacturing activity, an order must identify the physical deliverable, who supplies its components, and which programming and acceptance work belongs in the price.

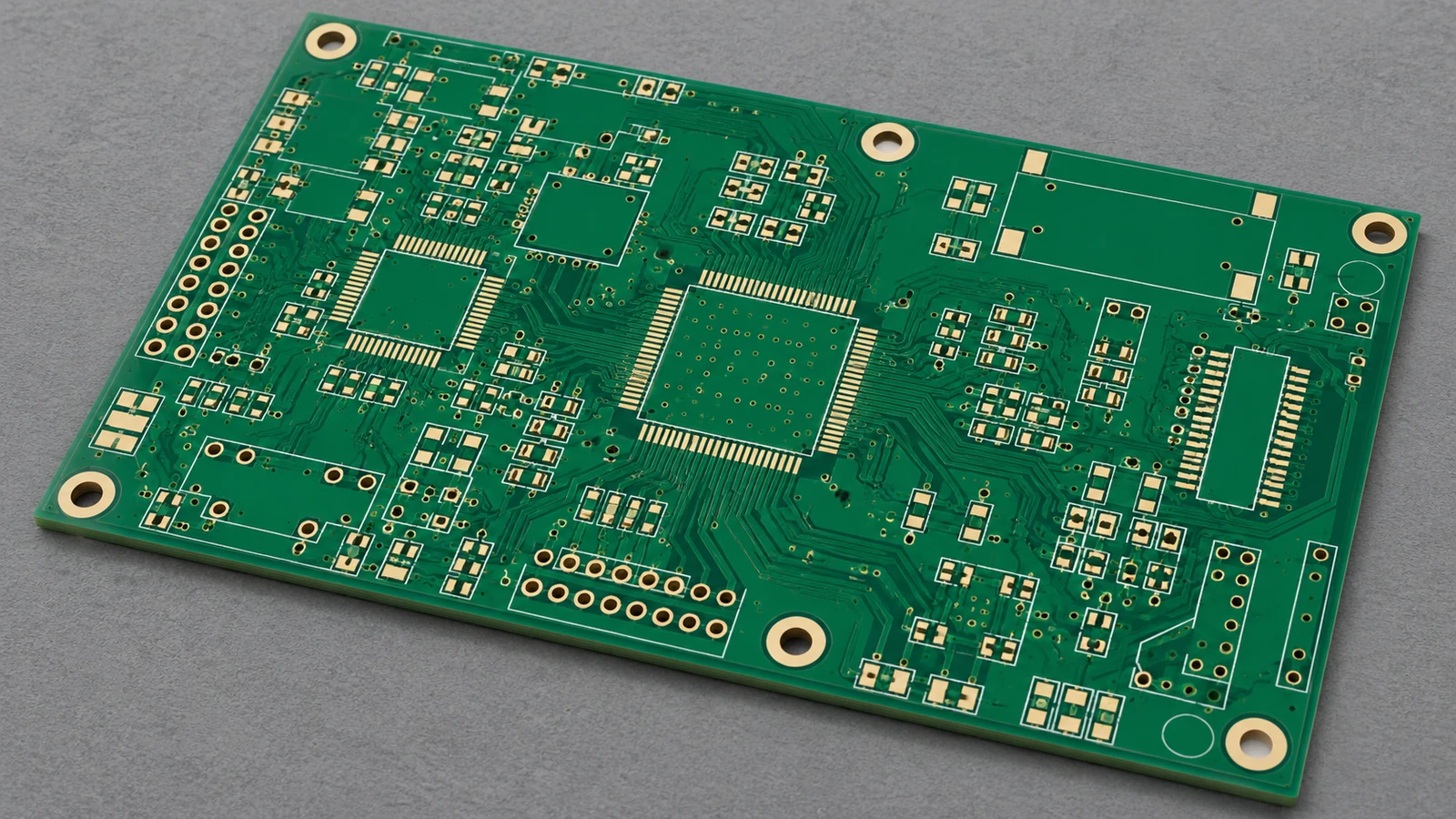

PCB stands for printed circuit board. Its copper traces, pads and other specified conductive features connect locations in the circuit. The insulating material supports and separates those conductors. Solder mask, surface finish, drilled holes and markings belong to the board fabrication specification where required; they do not turn an unpopulated board into a conventional PCBA.

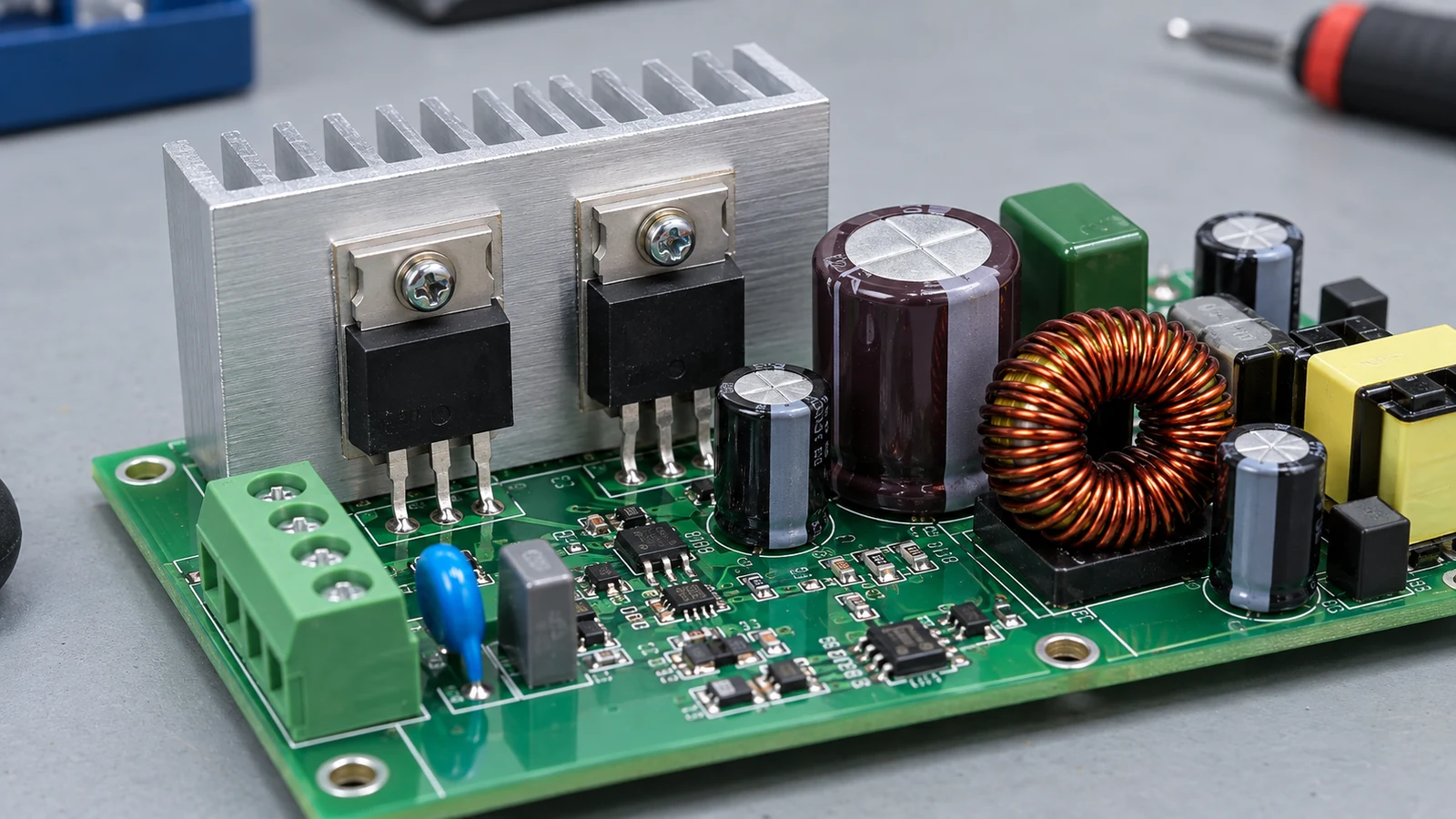

A PCBA can carry resistors, capacitors, integrated circuits, switches, connectors and other fitted items. Solder commonly connects component terminations to the board. Some designs also use press-fit or other specified connections, so PCBA should not be interpreted as requiring solder at every connection.

Testing does not add components. A tested bare PCB remains a bare PCB, while an assembled board remains a PCBA even if the OEM performs its functional verification later. Compare quotation boundaries carefully: fitted hardware, programming, fixtures and acceptance testing can represent different amounts of work.

Use bare PCB and assembled PCBA in purchasing documents. Informal use of “PCB” for a populated board is common, but a purchase order needs a clear receiving condition.

Board construction, components and assembly methods

A conventional PCBA contains the board, the mounted parts and the connections between them. The board’s copper-layer count describes its internal construction; the assembly-side description identifies where components are fitted. Neither establishes the board’s programming or test status.

Mounting Method and Population Side

The conventional mounting groupings are SMT, through-hole and mixed technology. Surface-mount technology attaches component terminations to surface pads. Through-hole assembly places leads or pins through board holes. Mixed technology combines the two on one assembly. These descriptions help identify scope; the actual component packages and design determine the production route.

The complete population-side choices for this comparison are top-only, bottom-only and both sides. Count layers and populated faces separately. A board with copper on both faces can carry components on only one face, whose top or bottom designation must agree with the released drawing’s orientation.

Placement data identifies component position, rotation, reference designator and mounting side. Keep those fields consistent with the assembly drawing and BOM, especially where a connector’s mating direction affects enclosure fit.

A partially populated variant can be a complete ordered assembly. If the released BOM intentionally leaves R12 and C8 unmounted, those empty positions are part of the approved configuration, not automatically missing-component defects.

How is a PCBA made?

PCBA manufacturing starts with a review of the released fabrication data, BOM, placement information and assembly drawing. The team resolves component identity, board revision, polarity, fitting instructions and acceptance requirements before the build proceeds. Sourcing and incoming checks establish that the specified boards and components are available for the selected variant.

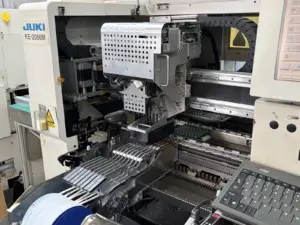

For a typical SMT route, solder paste is applied to the required pads, components are placed, and a controlled reflow process forms the soldered connections. The temperature profile must suit the actual paste, packages and board construction; one universal recipe does not fit every assembly.

Through-hole parts are inserted and connected using the specified process, which may involve selective, wave or hand soldering. Mixed-technology boards need an agreed operation sequence, including how previously fitted components are protected. Not every board uses every soldering method.

The assembly then receives the agreed inspections and electrical checks. Programming, calibration and functional testing are performed when included in the order, with records tied to the relevant build identity. After acceptance, boards are identified and packed for the specified handling and electrostatic-protection requirements. These operations define the supply route; they do not replace finished-product validation.

Where Assembly Ends and Functional Verification Begins

Assembly creates the populated board; functional verification checks specified behavior under defined conditions. Inspection, programming verification and functional testing answer different questions. Specify each deliverable. The PCBA order must name the required activities and the evidence that permits shipment.

A visually acceptable solder joint does not establish that a sensor reports the correct value or that a controller communicates with its host. Define the test scope instead of relying on the word assembled.

These methods can complement each other. ICT, boundary scan and functional test have different access requirements and coverage. A single tested checkbox leaves too much room for interpretation.

Programming Is a Separate Acceptance Item

Specify one programming arrangement: no programming required, OEM programming after delivery, or supplier programming before delivery. An analog board may need no firmware. A controller may require an application image, configuration data and device-specific settings.

Programming needs its own release identity. Specify the image revision, device configuration, verification method and installed-version record. Verifying written memory does not establish that the complete board passes its application tests.

State the Denominator Behind “100% Tested”

For integration-ready shipments, set the reference target at 100% of shipped units completing the agreed functional test, with an individual result linked to each serial number. This is a procurement benchmark, not a definition of PCBA or a claim of 100% fault coverage.

The test limits still matter. Checking supply rails and host communication does not also prove that every sensor input, load output and environmental condition meets the product specification, even when every board receives those two checks. Name the required functions and conditions.

Which Files Define a PCBA Purchase

A bare-board order defines the fabricated circuit board. A PCBA order must also identify which parts are fitted, how they are placed and connected, and which inspection, programming and functional verification activities the supplier must complete before shipment.

A filename is not a specification. Some manufacturing formats carry several data types, while other releases separate them into individual files; either approach needs a manifest identifying the controlling information and its revision.

The schematic supports circuit and test review. It cannot replace a controlled Bill of Materials (BOM), placement definition or acceptance procedure, just as a photograph cannot reliably establish component substitutions, firmware identity or hidden connections.

Release one consistent package. Give every document an identifier and revision, name the selected assembly variant, and define a discrepancy rule that stops the affected build until conflicting revisions or part definitions are resolved.

An OEM can source the bare PCB separately and send it to an assembly supplier. The order must then identify who checks incoming boards, who owns shortages or rejected material, and which records accompany the transfer. Supplying the board does not remove the need to define assembly acceptance.

Standards and Acceptance Classes for a PCBA Order

A PCBA specification should identify the applicable assembly standards, agreed revisions and product class, while keeping bare-board requirements separate. A standards reference addresses its defined subject; it does not replace a product-specific functional test procedure.

IPC-A-600 addresses printed-board acceptability, while IPC-6012 addresses qualification and performance requirements for rigid printed boards. For the populated assembly, IPC J-STD-001J addresses soldering materials, processes and acceptance requirements; IPC-A-610J addresses post-assembly acceptability. The applicable edition must be agreed in the order.

IPC J-STD-001 distinguishes three end-product classes:

• Class 1: general electronics whose principal requirement is the completed assembly’s function.
• Class 2: electronics requiring continued operation and extended service life, where uninterrupted service is desirable but not critical.
• Class 3: electronics for which sustained or on-demand performance is critical, including demanding operating environments.

For an application where downtime is unacceptable, use Class 3 as the higher-demand acceptance starting point and review any application-specific requirements. Select the class from the actual end use. An ordinary controller does not automatically become Class 3 because it is sold to an industrial customer.

Record the standard identifier, edition and class before quoting. A generic claim of IPC compliance does not establish whether the purchase invokes IPC-A-600 for bare boards, IPC-A-610J for assembly acceptance, or IPC J-STD-001J for soldering requirements. Match the requirements to the design. A Class 3 designation does not automatically add firmware loading, coating, environmental testing or complete system validation to the order.

How Prototype and Repeat Orders Describe Deliverables

Prototype orders should describe what the engineering team needs to learn from the boards; repeat orders should preserve an approved configuration and shipment acceptance condition. Both need controlled revisions. “Build the same as last time” is insufficient when components, firmware or tests have changed.

For a prototype, identify the population variant and any deliberately deferred work. An OEM may order assembled boards for internal firmware development, with the supplier performing workmanship inspection and agreed electrical checks. Receiving then verifies that specific scope. It should not assume those development units are ready for installation in customer products.

Preserve the required debug access. State whether temporary connectors or test leads belong in the delivered assembly, and record authorized deviations so that a laboratory modification cannot silently become the next production configuration.

Repeat orders need a controlled baseline. Freeze the board, BOM, assembly drawing, firmware and acceptance-procedure revisions in the release manifest, then define how substitutions and changes are approved and linked to each shipped board’s identity and test record.

A previous prototype pass does not release every future board. If the recurring purchase calls for the integration-ready benchmark, every shipped unit must pass the agreed functional procedure. The procedure also needs review when a revision changes the behavior being checked.

Five Buying Situations That Need Different PCBA Scopes

The right PCBA deliverable follows the OEM’s next operation. A development team, an enclosure assembler and a service department can buy the same board design while needing different programming, test and record obligations.

These are purchasing scenarios, not claims about particular customer projects. Their differences affect where the board can go after receiving inspection.

A sensor PCBA awaiting calibration may be exactly the correct delivery for an OEM with its own calibration station. Calling it “fully tested” would still be ambiguous if the shipment record does not distinguish preliminary screening from the OEM’s final accuracy adjustment and verification.

An HMI controller has a different interface boundary. The board may communicate correctly on a fixture while a separately supplied keypad cable or display configuration still needs validation in the finished assembly. Name that integration owner before comparing quotations.

A replacement board adds compatibility as a receiving requirement. Matching the outline and connector count does not establish that firmware, pin assignments or the service configuration match the installed product. Record the accepted revision relationship in the order.

How a PCBA connects to the operator interface

A control-board PCBA can receive input from a keypad, drive indicators and exchange information with a display or host. Those functions come from the specified circuit and firmware; they are not built into every assembled board. The operator-facing parts and the board need one agreed interface definition.

A PCB or FPC membrane switch describes a related switch construction. It does not automatically mean a complete controller with power management, processor and communications. The distinction is clearer in what a membrane switch is: the switch supplies the defined input function, while the receiving electronics interpret that input.

For an integrated front panel, the HMI assembly route brings the board, keypad or touch interface, display and mechanical mounting into a broader scope. Review connector orientation, pin assignment, component height, support points and cable movement against the enclosure drawing. Do not approve these details by comparing board outlines alone.

A board can pass a fixture test and still need verification with the actual keypad and display. Define whether those checks belong at board delivery or final integration. If the membrane tail folds during assembly, the connection and bend zone must remain accessible and mechanically supported. The delivery record should distinguish a tested controller from a complete, tested operator interface.

Prepare the Handoff Before Requesting a Quote

Prepare one released package that states what the OEM expects to receive: the bare-board revision, fitted population, assembly sides, programming status, acceptance procedure and shipment records. Assign the remaining integration work to a named party.

Review the PCB assembly product route for the board-level supply scope, then request a PCBA quotation with the released files and intended keypad, display or enclosure interfaces. A precise handoff makes the PCB-versus-PCBA distinction useful when comparing quotations and accepting delivered boards.
