Interruptores de membrana personalizados para interfaces OEM
JASPER fabrica interruptores de membrana, teclados de membrana, teclados tactiles, interfaces retroiluminadas y paneles de control sellados para equipos OEM que necesitan una entrada hombre-maquina fiable.
Empiece por la estructura de membrana mas cercana
Use estas estructuras comunes como punto de partida. JASPER puede ajustar overlay, circuito, separador, adhesivo, domo tactil, conector y sellado segun su plano o muestra.
Custom Interruptores de membrana
Project-specific layer stacks for enclosure fit, switch layout, tail exit, display windows, and brand graphics.
Ver masMembrane Keypads
Compact key layouts for instruments, access systems, handheld controls, and equipment front panels.
Ver masTactile Interruptores de membrana
Metal dome, poly dome, and embossed key options for defined snap feel and controlled actuation force.
Ver masBacklit Interruptores de membrana
LED, light-guide, EL, and selective window structures for low-light operation and guided input.

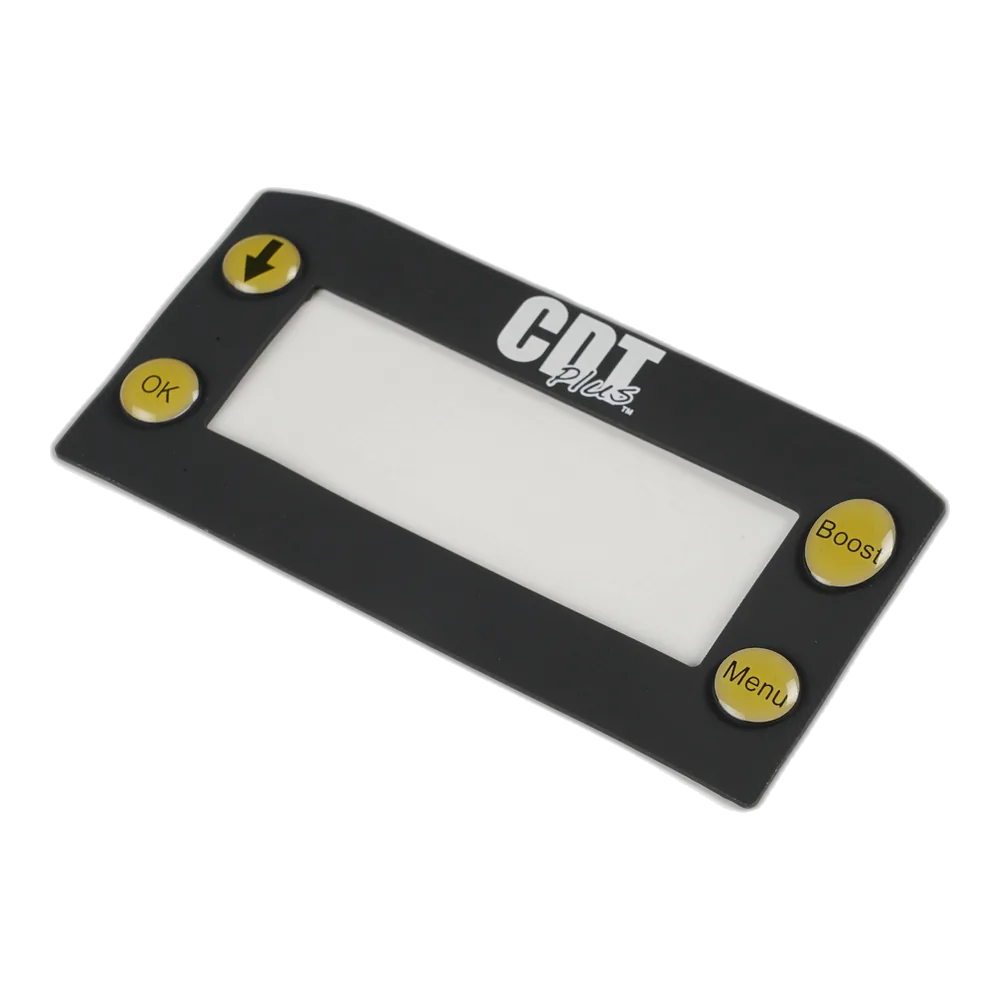

Ver masMembrane Switch Panels
Keys, display windows, and indicators combined into one sealed front panel or integrated control assembly.
Ver masWaterproof Interruptores de membrana
Sealed overlay, edges, and tail exit engineered for IP67, IP68, and IP69K wash-down and outdoor use.
Ver masNon-Tactile Interruptores de membrana
Smooth, low-profile flat-surface stacks without dome feedback, for quiet, sealed, easy-to-clean panels.

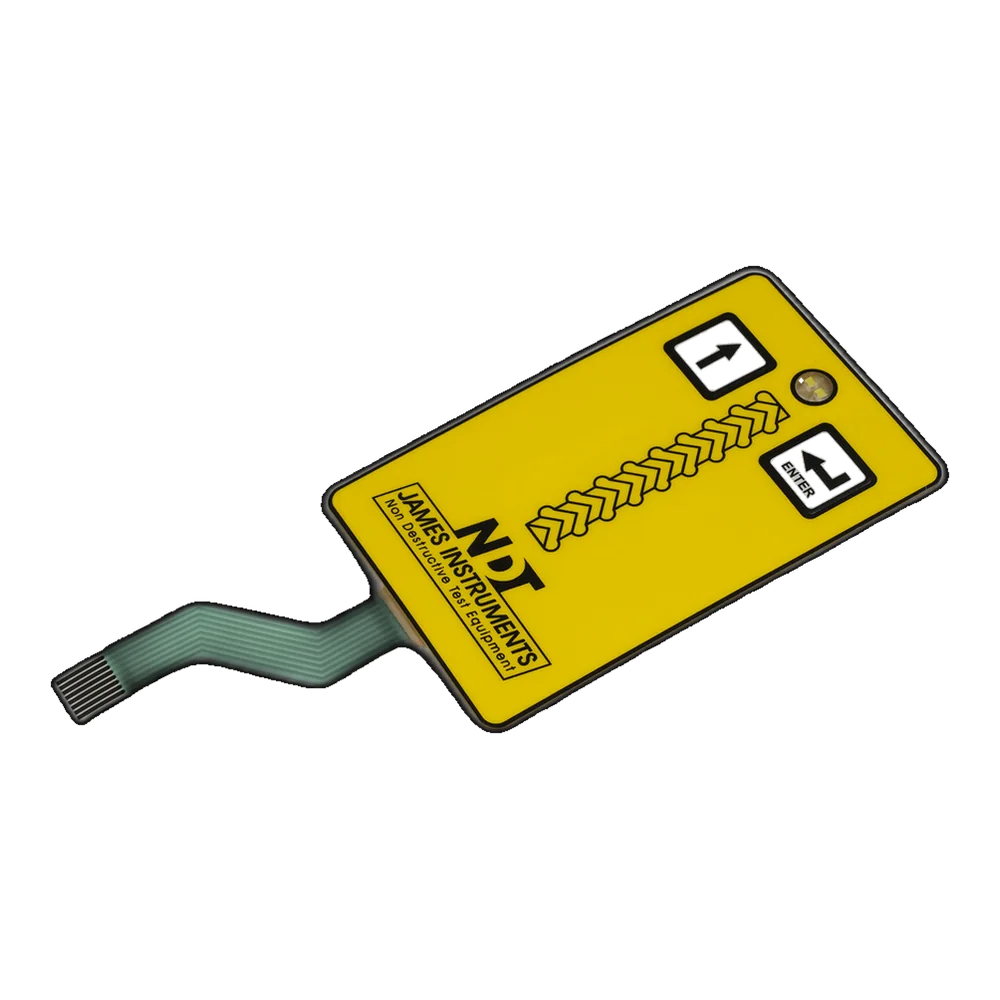

Ver masMetal Dome Interruptores de membrana
Stainless metal dome arrays with controlled snap ratio and actuation force for crisp, repeatable tactile feel.
Ver masPCB / FPC Interruptores de membrana
Rigid PCB or flexible FPC circuits for SMT components, LEDs, and ZIF/FFC tails built to your pinout.
Ver masLED Interruptores de membrana
Discrete LED indicators and dead-front windows for power, status, alarm, and mode feedback on the panel face.

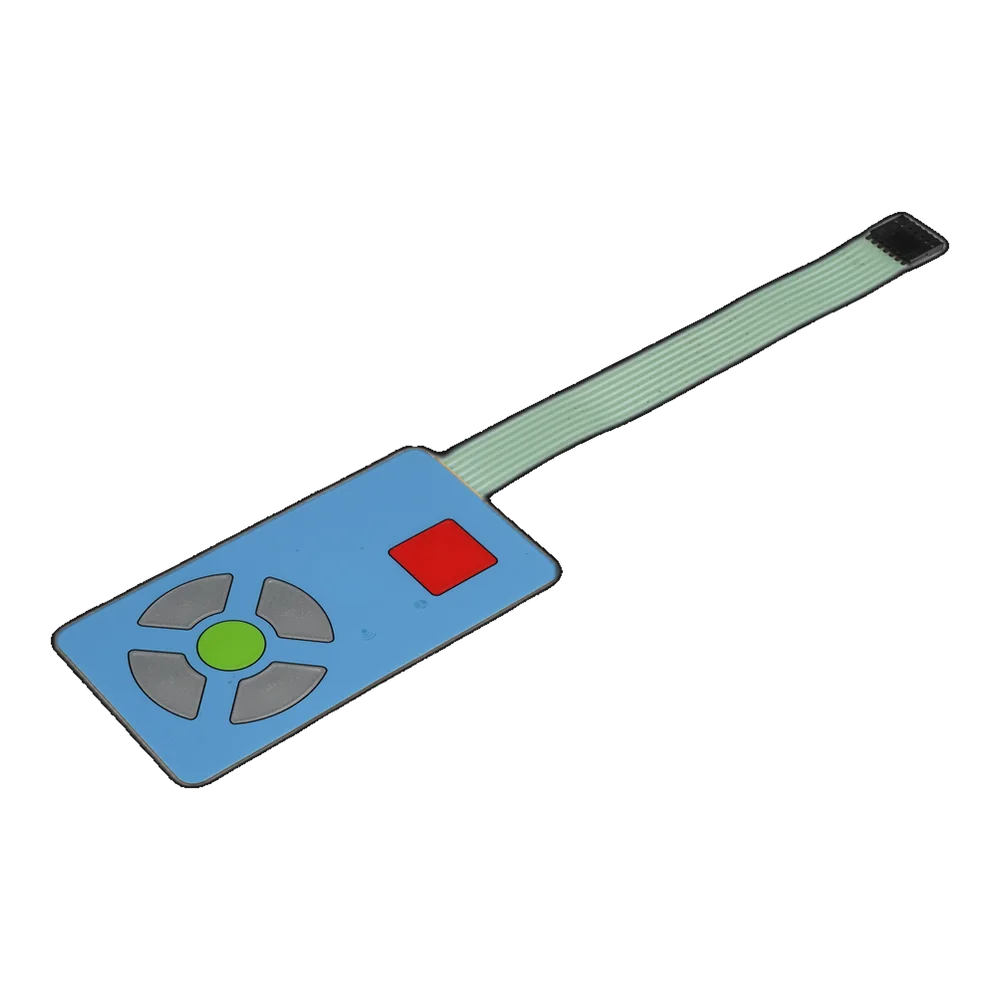

Ver masMembrane Button Switches
Single or grouped button structures with configurable actuation force and glove-compatible surface textures.
Ver masAdditional membrane switch capabilities
A membrane switch is usually a custom assembly, not a catalog part.
The same front-panel concept may need a different overlay film, tactile dome, printed circuit, tail connector, adhesive, shielding, or sealing method depending on the enclosure, cleaning method, temperature, UV exposure, and expected operating life.
Compare membrane switch options before sending an RFQ
If you are not sure which structure fits your project, start with the closest product type and include drawings or sample photos in your quote request.
| Structure | Best for | Common design decisions | Start here |
|---|---|---|---|
| Standard membrane switches | Sealed human-machine interfaces for OEM equipment. | Overlay material, switch layout, spacer, circuit tail, rear adhesive, connector. | Interruptores de membrana |
| Custom membrane switches | Project-specific interfaces built around your enclosure, drawing, or sample. | Layer stack, switch layout, tail exit, display windows, brand graphics, connector. | Custom Interruptores de membrana |
| Membrane keypads | Dense key layouts for instruments, access panels, and handheld controls. | Key pitch, legend durability, tactile feel, connector type, overlay finish. | Membrane Keypads |
| Tactile membrane switches | Operators need a clear snap feel and repeatable actuation. | Metal dome force, key embossing, dome retainer, circuit contact, cycle-life target. | Tactile Switches |
| Backlit membrane switches | Low-light equipment, status indicators, and illuminated icons. | LED position, light guide, icon windows, diffusion, power routing, light leakage control. | Backlit Switches |
| Membrane switch panels | Keys, display windows, and indicators combined into one sealed front panel. | Panel size, mounting, display windows, hardware cutouts, overlay graphics, sealing. | Membrane Switch Panels |
| Waterproof membrane switches | Outdoor, cleaning, splash, or harsh-use environments. | Perimeter seal, adhesive selection, tail exit, venting, overlay film, enclosure surface. | Waterproof Switches |
| Non-tactile membrane switches | Quiet, sealed, easy-to-clean panels where no snap feedback is required. | Overlay film, spacer gap, actuation force, surface texture, sealing, cycle life. | Non-Tactile Switches |
| Metal dome membrane switches | Operators who need a crisp, repeatable snap with defined actuation force. | Dome force, dome diameter, snap ratio, plating, support gap, retainer. | Metal Dome Switches |
| PCB / FPC membrane switches | Interfaces that carry SMT components, LEDs, or connect to a host PCB. | Rigid PCB vs FPC, SMT layout, ZIF/FFC tail, pinout, flex routing, shielding. | PCB / FPC Switches |
| LED membrane switches | Panels needing on-board power, status, alarm, or mode indication. | LED position, color, brightness, dead-front windows, diffusion, power routing. | LED Switches |
| Membrane button switches | Single or grouped buttons with a defined press feel and glove use. | Actuation force, button size, embossing, surface texture, backlighting, cycle life. | Membrane Button Switches |
RFQ tip:
Send the front artwork, mechanical outline, layer stack if available, tail length, connector requirement, expected environment, and estimated annual volume. These details usually reduce quote revisions.
Membrane switch layers and material choices
A typical membrane switch includes a printed graphic overlay, spacer layers, conductive circuit, rear adhesive, tail exit, and connector. Depending on the application, the design may also include tactile domes, LED backlighting, EMI shielding, clear windows, or a rigid backer.
Common options
- Polyester or polycarbonate graphic overlays
- Matte, gloss, texture, and selective window finishes
- Metal dome or non-tactile switch structures
- Printed silver, carbon, or flexible circuit options
- 3M-style adhesive stack-up and spacer selection
- Connector, tail length, shielding, and backer integration
- LED, light guide, EL, or selective backlighting
- Waterproof perimeter sealing and tail-exit protection
Membrane switch PDF documents
Download practical engineering documents for design review, RFQ preparation, and membrane switch stack-up planning.
These documents are prepared for early engineering review. Use them before sending drawings or confirming the final membrane switch structure.
Membrane Switch Diseno Guide
Layer stack, overlay material, tactile structure, connector, and manufacturability review points.
- Overlay and spacer planning
- Tail and connector notes
- DFM review checklist
Checklist RFQ de interruptores de membrana
Information to prepare before requesting pricing for a custom membrane switch project.
- Drawing and artwork inputs
- Environment and sealing details
- Quantity and revision notes
Stack-Up Options Reference
Typical construction choices for tactile, sealed, backlit, and integrated membrane switch panels.
- Tactile and non-tactile options
- Sealing and backlighting notes
- Integrated panel choices
Que preparar para una cotizacion mas rapida
A clear RFQ package helps engineering review the structure faster and avoids repeated revisions before sampling.
Learn more about JASPER membrane switch manufacturing
JASPER supports OEM membrane switch projects from drawing review and stack-up selection to tooling, circuit testing, cleanroom production, and repeat-order documentation. Use the technical reference to understand how engineering review, material choices, and production controls affect custom membrane switch performance.
Hablar con ingenieriaWhere membrane switches work well
Membrane switches are useful when equipment needs a sealed, low-profile, printed interface that combines graphics, key input, and mounting adhesive in one custom assembly.
- Low-profile construction for compact enclosures
- Sealed front surface for cleaning and splash resistance
- Custom graphics, icons, colors, and display windows
- Tactile or non-tactile key feedback
- Integrated tail connector for PCB connection
- Backlighting and shielding options for demanding products
Common OEM application areas
JASPER membrane switches are used in equipment where the user interface needs durable printed graphics, repeatable key input, and a structure matched to the enclosure.
- Industrial control panels and machine interfaces
- Medical and laboratory equipment
- Outdoor instruments and sealed controls
- Inicio appliance and consumer device keypads
- Automotriz electronics and seat-interface controls
- Spa, pool, and wet-area control equipment
- Test instruments and measurement equipment
- Security and access controls, plus kiosk and vending controls
See how membrane switch projects move from drawing to production
Use this area as a visual process anchor for printing, die cutting, lamination, electrical testing, and final inspection.
If the video does not load in your region, open the manufacturing video on YouTube.
Membrane switch questions buyers often ask
What is a membrane switch?
A membrane switch is a custom user-interface assembly made from thin printed and adhesive layers. It typically combines a graphic overlay, spacer, conductive circuit, tail connector, and rear adhesive. It can be tactile or non-tactile, sealed, backlit, or integrated into a control panel.
What information does JASPER need for a quote?
Send a drawing, artwork, sample photos, dimensions, tail length, connector requirements, expected environment, key feel, annual volume, and any inspection or packaging requirements. If the design is early, JASPER can still review the concept and suggest a practical stack-up.
Can membrane switches be waterproof?
Yes, membrane switches can be designed for splash resistance or sealed use. The final performance depends on the perimeter seal, adhesive, tail exit, enclosure surface, material selection, and how the switch is mounted in the product.
What materials are used for the overlay?
Polyester and polycarbonate are common overlay materials. Selection depends on durability, chemical exposure, surface finish, embossing, display windows, UV exposure, and the product’s expected operating environment.
Can JASPER make backlit membrane switches?
Yes. Backlighting options can include LEDs, light guides, EL panels, selective windows, and printed icons. The best option depends on power, brightness, icon layout, key structure, and light leakage control.
Helpful membrane switch resources
Prepare drawings, compare materials, and reduce RFQ back-and-forth.
Membrane Switch Diseno Guide
Review stack-up, tail exit, overlay, dome, adhesive, and connector decisions before tooling.
Leer guiaWaterproof Diseno Checklist
Prepare sealing, tail exit, adhesive, enclosure, and cleaning requirements for harsh-use controls.
Leer articuloRFQ Checklist
Know which drawings, artwork, quantities, and inspection details help quote a custom switch faster.
Leer checklistMembrane switch reference pages for cleaner RFQs
Use these definition, connector, and glossary resources to align artwork, layer stack, tail routing, pinout, adhesive, and inspection language before a custom membrane switch quote.
Use these resource pages before quotation
Review capacitive touch, waterproof sealing, RFQ inputs, and downloads before locking artwork, connector, enclosure, or sample requirements.
Necesita un interruptor de membrana personalizado para un producto OEM?
Send drawings, artwork, sample photos, or application requirements. JASPER will help confirm the structure, materials, and quote details.
Solicitar cotizacion
