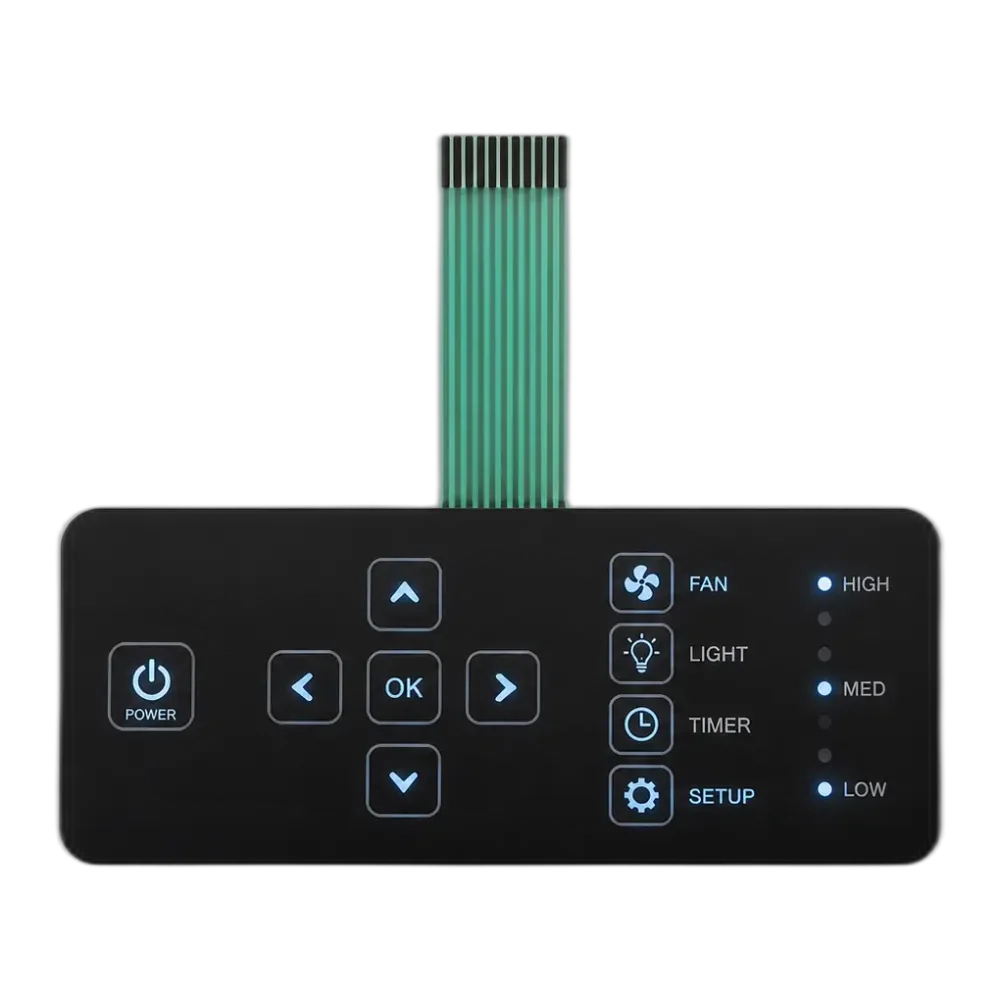

JASPER LED membrane switch with multi-coloured indicator dots and dead-front icons

Power · status · alarm · mode · dead-front

Interruptores de membrana LED con indicadores e iconos retroiluminados

LEDs SMD integrados en la capa de circuito impreso para que el panel indique al operador que esta haciendo la maquina.

JASPER integra LEDs SMT 0603, 0805 y 1206 dentro de un 0.5–1.2 mm stack de membrana para power, status, alarm, mode y respuesta dead-front en paneles de control OEM.

0.5–1.2 mmaltura total del stack de membrana con LED
0603 / 0805 / 1206opciones de encapsulado LED SMT
±0.05 Vclasificacion de voltaje directo en el reel
IP65 / IP67sellado segun IEC 60529 con junta perimetral

OEMs que integran nuestros switches en sus equipos

Por que los compradores eligen respuesta iluminada

Un LED en nuestro panel nunca es solo iluminacion — cada uno tiene una funcion.

Iluminar un panel es la parte facil. Making the panel say something is the harder one, and the reason every LED on a JASPER stack carries an assigned semantic role — power, status, alarm, mode o un icono dead-front. Each layer of the build — overlay, ink, spacer, circuit, adhesive — gets pulled in to support whichever role the design needs.

An LED membrane switch is the lit member of the membrane switches family. We have integrated indicators into stacks for medical, instrumentation, industrial-automation, and appliance OEM programs, and the same SMT LEDs sit beside metal-dome tactile keys when a button needs both a click and a coloured ready-light. For whole-panel illumination rather than discrete indicators, our backlit membrane switches use a side-fire light guide instead; for a side-by-side of the lighting technologies, see our membrane switch backlighting options guide comparing LED, EL, and fibre-optic backlighting.

Respuesta rapida

What is an LED membrane switch?

A JASPER LED membrane switch sits surface-mount LEDs (0603, 0805, or 1206) right inside the printed circuit layer. The result is a ≤1.2 mm stack that tells the operator what is happening — power, status, alarm, mode — including dead-front icons that vanish when their function is off. Six coupled choices decide whether the panel reads cleanly: placement, opaque masking, window material, Vf binning, stackup, and IEC 60529 sealing. Not six unrelated specs.

LED membrane switchLED indicator membrane switchLED illuminated membrane keypadDead-front icons0.5–1.2 mm stackIP65 / IP67 capable

Construido para respuesta

Five indicator roles, and every layer of the build supports them.

Take the power indicator first: a 0603 green LED at 515 nm — or a 470 nm blue emitter where the panel palette calls for it — sitting behind a 3 mm circular window sized so the dot stays legible at 45° off-axis, the angle a technician leans at over a benchtop.

Status is where it gets interesting. A multi-colour RGB LED gives one physical button three readings — ready, busy, fault — and the driver runs PWM at ≥200 Hz so peripheral vision stops noticing the chop. We bin reels by forward voltage within ±0.05 V before placement; skip that and a row of “ready” lights ends up looking like slightly different colours, which trains operators to ignore the row.

Alarm uses a red 630 nm LED blinking at 1–2 Hz off a hardware driver, not a firmware loop — a firmware loop dies the moment the firmware does, exactly when you need the alarm. Mode is the quiet one: an amber 590 nm LED latched on while the operator is in jog, calibration, or programming, so the panel shows what the firmware thinks the machine is doing.

Power0603 green LED at 515 nm (or 470 nm blue) behind a 3 mm window, legible at 45° off-axis.
StatusMulti-colour RGB LED — ready, busy, fault — PWM ≥200 Hz, Vf binned ±0.05 V.
AlarmRed 630 nm LED blinking 1–2 Hz on a hardware driver, with two pads for an audible-buzzer harness.
ModeAmber 590 nm LED latched on through jog, calibration, or programming states.
Dead-front iconBlack opaque ink (OD ≥1.5) behind tinted PC; a 4000 K white emitter makes the glyph glow through.

Seis controles de diseno that decide whether the panel reads cleanly

Treat the LED system as six coupled decisions rather than a checklist — bumping one usually moves two others. The defaults below describe an industrial-instrument recipe; medical and aerospace builds tend to slide toward the right-hand columns. Most indicator-only panels go 0805 top-fire SMT, which needs no light-guide film; the moment the same panel needs a wide backlit zone, the build flips to side-fire 0603 LEDs coupled into a PMMA or PC light guide.

#DimensionDefaultRange / optionStandard or rule
1LED placement & package0805 SMT, top-fire0603 / 0805 / 1206; 8–14 mm pitchIPC-7351 land-pattern, placement ±0.13 mm
2Window materialPC 0.25 mm, anti-glare mattePET 0.175 mm; haze 5–15 %ASTM D1003 haze and luminous transmittance
3Opaque maskingBlack ink OD ≥1.5, 1.5 mm borderLayered black + white blockout, 2 mm borderUL 969 marking and label adhesion
4Capa de circuitoPET FPC 0.075 mm, silver ink, IPC-A-600 Class 2Polyimide FPC, Class 3, TVS-protectedIPC-A-600 Class 2 / Class 3
5Stackup thickness0.9 mm total0.5–1.2 mm; spacer 0.075–0.175 mm; adhesive 0.05–0.1 mmCompatible with SS 304 metal-dome tactile at 1.5–4 N
6Environment−20 °C to +70 °C, IP65−40 °C to +85 °C, IP67, conformal coat; 50,000–100,000 h LED life @ 70 % brightnessIEC 60529 ingress codes

Window material is mostly an argument between PC and PET. PC at 0.25 mm wins on impact and temperature once the panel goes handheld or wash-down, and matte anti-glare is almost always the default — gloss panels mirror ceiling fluorescents and a single indicator dot disappears into the reflection. An ASTM D1003 haze of 8–12 % is the sweet spot for diffusion versus on-axis transmission: higher and the LED reads soft, lower and you get hotspots.

Bleed between adjacent keys is what kills the cheap LED panel during the first lit-up demo. The fix has three parts: a black border 1.5–2 mm wide around every window; a layered black-plus-white blockout for dead-front icons that holds OD ≥1.5 even at oblique viewing angles; and adhesion checked against UL 969 before the overlay goes onto the spacer. Clean window cutouts and dead-front masking are part of how we plan graphic overlays for a lit panel.

For the circuit layer the baseline is polyester FPC with silver-conductive ink at IPC-A-600 Class 2; polyimide and Class 3 ship on medical and aerospace work where the panel sees autoclave or vibration. LED groups are wired series-parallel, a TVS diode lives on the supply rail for ESD survival, and every reel gets binned within ±0.05 V Vf. That circuit-substrate choice is shared with our PCB and FPC membrane switches.

Total stackup comes in at 0.5 to 1.2 mm — overlay, masking, spacer 0.075–0.175 mm, circuit, LEDs, adhesive 0.05–0.1 mm — which is what makes SS 304 0.075 mm metal-dome tactile keys at 1.5–4 N actuation feasible on the same panel. On the environmental side, −20 °C to +70 °C covers most appliance and instrumentation work; medical and outdoor builds push to −40 °C to +85 °C with conformal coating. LED output drops about 0.5–1 % per °C, so we over-spec the room-temperature drive current to hit target brightness at the worst-case end. Rated LED life runs 50,000–100,000 h to 70 % of initial brightness, so the indicators outlast the panel they sit in. Sealing is per IEC 60529: IP65 standard, IP67 if a perimeter gasket is in the budget.

Reading the lit panel

How we keep indicators legible once the LEDs switch on

An LED only earns its place when the operator can read it instantly. These four controls keep status, alarm, and mode unambiguous on a JASPER LED membrane keypad.

Uniform brightness

We bin every reel by forward voltage within ±0.05 V before placement, so a row of “ready” lights reads as one colour rather than a shopping list of near-matches.

Dead-front masking

Fault, overload, and water-low glyphs print in black opaque ink at OD ≥1.5 behind tinted polycarbonate, invisible until a 4000 K white emitter glows them through.

Flicker-free dimming

Status and mode LEDs dim under PWM at ≥200 Hz so peripheral vision never catches the chop, while alarm blink runs off a hardware driver independent of firmware.

No cross-key bleed

A 1.5–2 mm dark border and UL 969-verified opaque ink isolate each window, a layout discipline we carry across every membrane keypads project that runs LEDs.

Where LED indicator panels fit best

Medical and instrumentation

Status, alarm, and dead-front mode icons on bedside monitors and analyzers, often on Class 3 polyimide circuits with conformal coating.

Industrial automation

Ready / busy / fault status next to tactile keys at 1.5–4 N, sealed to IP65 or IP67 for cabinet and machine-side HMIs.

Appliance and consumer

Power and mode indicators behind matte PC windows where a single dot must stay crisp under bright kitchen and ceiling lighting.

RFQ preparation

Send the panel details that decide where the LED feedback lands.

Send your panel artwork (AI, PDF, or DXF) and a one-line note on where the LED feedback needs to land — power, status, alarm, mode, dead-front, or all of the above. We review materials, layer stack, masking, sealing target, and lead time before tooling.

  • Panel artwork in AI, PDF, or DXF
  • LED roles needed: power, status, alarm, mode, dead-front
  • Window material: PC 0.25 mm or PET 0.175 mm
  • Target sealing level: IP65 or IP67 per IEC 60529
  • Circuit class: IPC-A-600 Class 2 or Class 3
  • Operating temperature and tactile-key requirement

Manufacturing baseline

JASPER supports OEM LED membrane switch builds from design review through production in Dongguan.

Our default circuit layer ships at IPC-A-600 Class 2, with Class 3 available on request for medical and aerospace builds. RoHS and REACH material options are available, and every panel leaves the line with a photometric witness coupon recording brightness uniformity and dominant wavelength, with ISO-certified process control across a 5,000 m² factory and 2,500 m² cleanroom production area.

Solicitar cotizacion

LED membrane switch questions

What is a dead-front LED membrane switch, and how does the icon disappear when off?

Dead-front hides a graphic until its LED activates. The icon is printed in black opaque ink (OD ≥1.5) on the back of a tinted PC or PET overlay, with the LED mounted on the circuit layer directly beneath. LED off — the masked area absorbs ambient light and the panel reads as a single dark surface. LED on — a 4000 K white emitter behind the icon makes it glow through the tinted window. We reach for it on fault, overload, and safety-mode icons where visual clutter at rest is unwanted.

Can LED indicators coexist with tactile (domed) keys in the same membrane switch?

Yes — that is the most common configuration we build. Respuesta tactil comes from SS 304 0.075 mm metal domes seated in the spacer/circuit layers at 1.5–4 N actuation. The LEDs (0603 to 1206 SMT) sit on the same printed circuit next to the domes, not under them, so the dome’s snap action is unaffected. Total stackup stays at 0.5–1.2 mm. A typical layout pairs a tactile key with a status LED at its corner — one button gives both clicky feedback and a coloured ready-light. Indicator LEDs and clicky tactile keys share one assembly, not two stacked subassemblies — important if the enclosure already eats most of the height budget.

What stops LED light from leaking between keys on a membrane keypad?

Three controls, working together. First, an opaque black ink ring around every LED window with optical density ≥1.5 — single layer for indicator panels, layered black-plus-white blockout for dead-front graphics. Second, a 1.5–2 mm dark border between window edge and the next key, sized against the LED’s viewing angle. Third, a low-scatter adhesive plus a perimeter gasket that isolates each lit zone mechanically. We bench-verify with a photometric witness coupon on every production lot.

Get an LED membrane panel quoted by our engineers

Send your panel artwork (AI, PDF, or DXF) and a one-line note on where the feedback needs to land. We come back inside 24 hours with a layer-stack recommendation, a BOM, and a quote — using the same IPC-A-600, IEC 60529, and UL 969 baselines that supply our ISO-certified production in Dongguan.

Start RFQ Review

Need whole-panel light instead of indicators? See our backlit membrane switches for area illumination.
