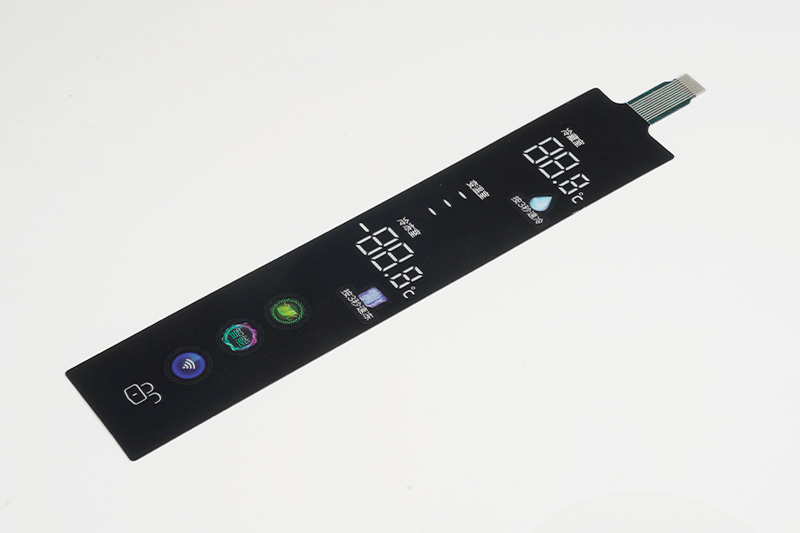

Refrigerator touch panel
keyword:
Product description
Membrane Switch Product Parameters
1. Basic Information
- Product name:Refrigerator Touch Panel
- Brand: JASPER
- Applicable equipment:Refrigerators, smart cooling systems
- Key type:touch
- Key life:≥1,000,000 cycles
2. Electrical Parameters
- Rated voltage:DC 3V–12V
- Rated current:≤100mA
- Contact resistance:≤100Ω
- Insulation resistance:≥100MΩ at 250V DC
- Withstand voltage:250V AC for 1 minute
- Rebound time:≤5ms
3. Structure and Materials
- Circuit type:PET/PC-based flexible circuit
- Panel material:PC（customizable)
- Panel thickness:0.2mm–1.5mm
- Adhesive type:3M industrial adhesive
- Color printing:Screen printing/digital printing
- Dimensions:Customizable per client specifications
4. Mechanical Properties
- Key pressure:150gf–350gf
- Key rebound force:130gf–300gf
- Service life:≥1,000,000 actuations
- Protection level:IP65–IP67
5. Connection Method
- Standard interface:FPC, PIN, ZIF
- Wiring spacing:0.5mm, 1.0mm, 1.25mm
- Gold finger processing:Nickel-gold plating, carbon ink
6. Special Functions (Optional)
- Backlight solution:LED, EL, fiber optic
- Protection function:Waterproof, dustproof, anti-UV
- Key type:Embossed, flat, capacitive
- Intelligent interaction:Touch sensing, haptic feedback
7. Environmental Adaptability
- Working temperature:-20°C to 70°C
- Storage temperature:-40°C to 85°C
- Humidity resistance:85% RH at 40°C
8. Certification and Standards
- Compliance with standards:ISO 9001, CE, RoHS
- Compliance with environmental protection requirements:RoHS, REACH
9. Application Scenarios
- Home appliance industry(Refrigerators, smart kitchen devices)
- Industrial control(Temperature control panels, automation equipment)
- Medical equipment(Sterile and easy-to-clean interfaces)
- Automotive electronics(Climate control, smart dashboards)
10. Customization Service
- LOGO customization
- Color customization
- Button layout
- Waterproof design
FAQ – Refrigerator Touch Panel
Q1: What are the advantages of using a membrane switch for refrigerator panels?
A: Membrane switches offer high durability, water resistance, and easy cleaning, making them ideal for kitchen environments. They also provide customizable designs and advanced touch functionality.
Q2: Can the touch panel be used in extreme temperatures?
A: Yes, the panel operates in temperatures from -20°C to 70°C and can be stored in environments as cold as -40°C, ensuring reliability in refrigeration applications.
Q3: Is the touch panel waterproof?
A: Yes, JASPER’s refrigerator touch panels are designed with IP65–IP67 protection, making them resistant to moisture and spills.
Q4: Can the panel include backlighting for better visibility?
A: Yes, we offer LED, EL, and fiber optic backlighting options for enhanced visibility, even in low-light conditions.
Q5: What types of interfaces are available for connection?
A: Our panels support FPC, PIN, and ZIF connections, with wiring spacing options of 0.5mm, 1.0mm, and 1.25mm.
Q6: Do you provide custom designs for different refrigerator models?
A: Absolutely! We offer full customization, including LOGO printing, button layout adjustments, waterproof features, and various material choices.
Q7: How long is the lifespan of the touch panel?
A: Our panels are tested for at least 1,000,000 actuations, ensuring long-lasting performance in home and commercial refrigerators.
Q8: Are JASPER’s touch panels compliant with environmental regulations?
A: Yes, our products meet RoHS and REACH standards, ensuring they are environmentally friendly and safe for use.
